Applied Software Programs

Applied software programs for processing hydrobiological data have been created by a creative team of researchers at the Institute of Hydrobiology of the NAS of Ukraine.

BiotMetrics

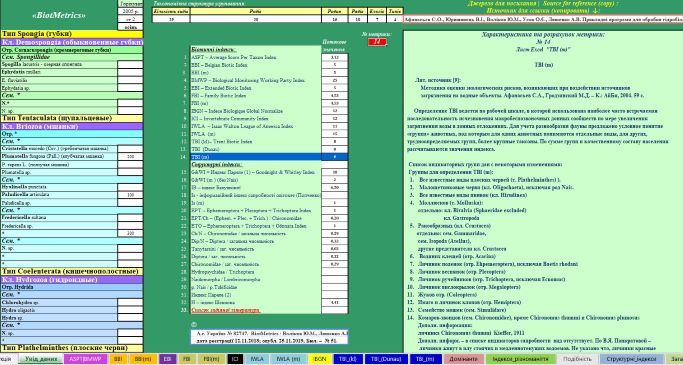

BiotMetrics — program screenshot

The «BiotMetrics» program was developed to unify and simplify the procedure for calculating biotic indices and other indicators reflecting water quality, to familiarise users with their structures, and to teach calculation algorithms. Well-known metrics widely used on major rivers and water bodies around the world are employed for bioindication of pollution. Some of them are proposed in modified forms adapted to the characteristics of the faunal composition of water bodies of different types in Ukraine.

А.с. Україна № 82747. Воліков Ю.М., Ляшенко А.В. BiotMetrics; опубл. в Бюл. – № 51.

Saprogram — ZB

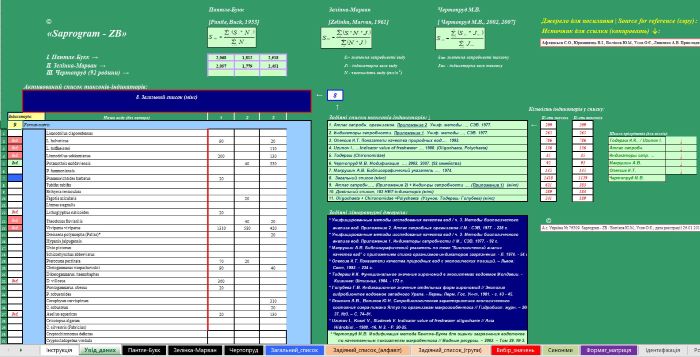

Saprogram ZB — program screenshot

The «Saprogram — ZB» program was created to unify and simplify the procedure for calculating saprobity index values using indicator organisms from macrozoobenthos and macrozooperiphyton communities. The calculation algorithms are based on a logical-heuristic approach in accordance with the classical methods: Pantle-Buck in the modification of Sládecek, and Zelinka-Marvan with the saprobity index expressed according to Rothschein in the modification of Todorascu. In parallel, a modernised saprobiological index is calculated using the Chertoprud method. The program uses lists of indicator taxa from the most widely cited literature sources, with calculations for each conducted separately. It is possible to work with various combinations (mixes) of them.

А.с. Україна № 76309. Saprogram — ZB / Воліков Ю.М., Усов О.Є.; заяв. 07.11.2017; опубл. 27.04.2018, Бюл. № 48.

StatVo

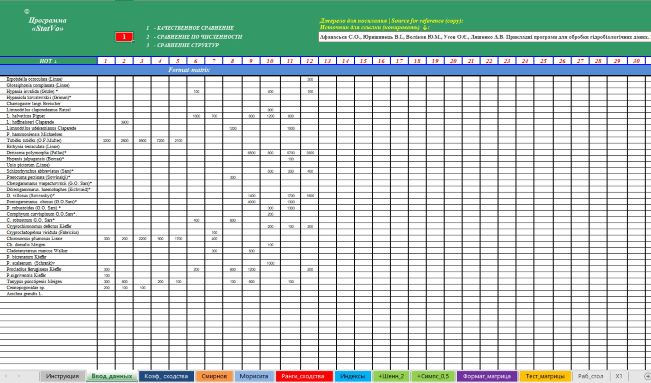

StatVo — program screenshot

The «StatVo» program was created for the integrated use of similarity and originality coefficients. The program allows calculation of the main similarity coefficients in extended forms for qualitative and quantitative comparison of communities. It implements a comprehensive approach to their use, protected as a utility model patent. Additionally, the main indices of biological and species diversity, as well as individual saprobiological indicators, are calculated.

In the «Saprogram — ZB» and «StatVo» programs, the input data are working species lists of hydrobionts with corresponding quantitative indicators in the form of Excel tables.

А.с. Україна № 59402. StatVo / Воліков Ю.М.; заявл. 25.02.2015; опубл. 30.07.2015, Бюл. № 37.
Патент України на корисну модель UA 128459 U, G01N 33/18 / Воліков Ю.М. – № u201711404; заявл. 21.11.2017; опубл. 25.09.2018. – Бюл. № 18/2018.
Program authorship certificates

Each program is accompanied by a user manual and a list of references, and is protected by an authorship certificate.

Obtain the Programs Free of Charge

Send the completed application form to the email address volikov4@ukr.net, with the subject line: «application for software products».

Full name
Institution name (place of work or study)
Purpose of use
Name of software product

The authors will be grateful for constructive suggestions regarding the improvement and implementation of the software products. Email for correspondence: volikov4@ukr.net
